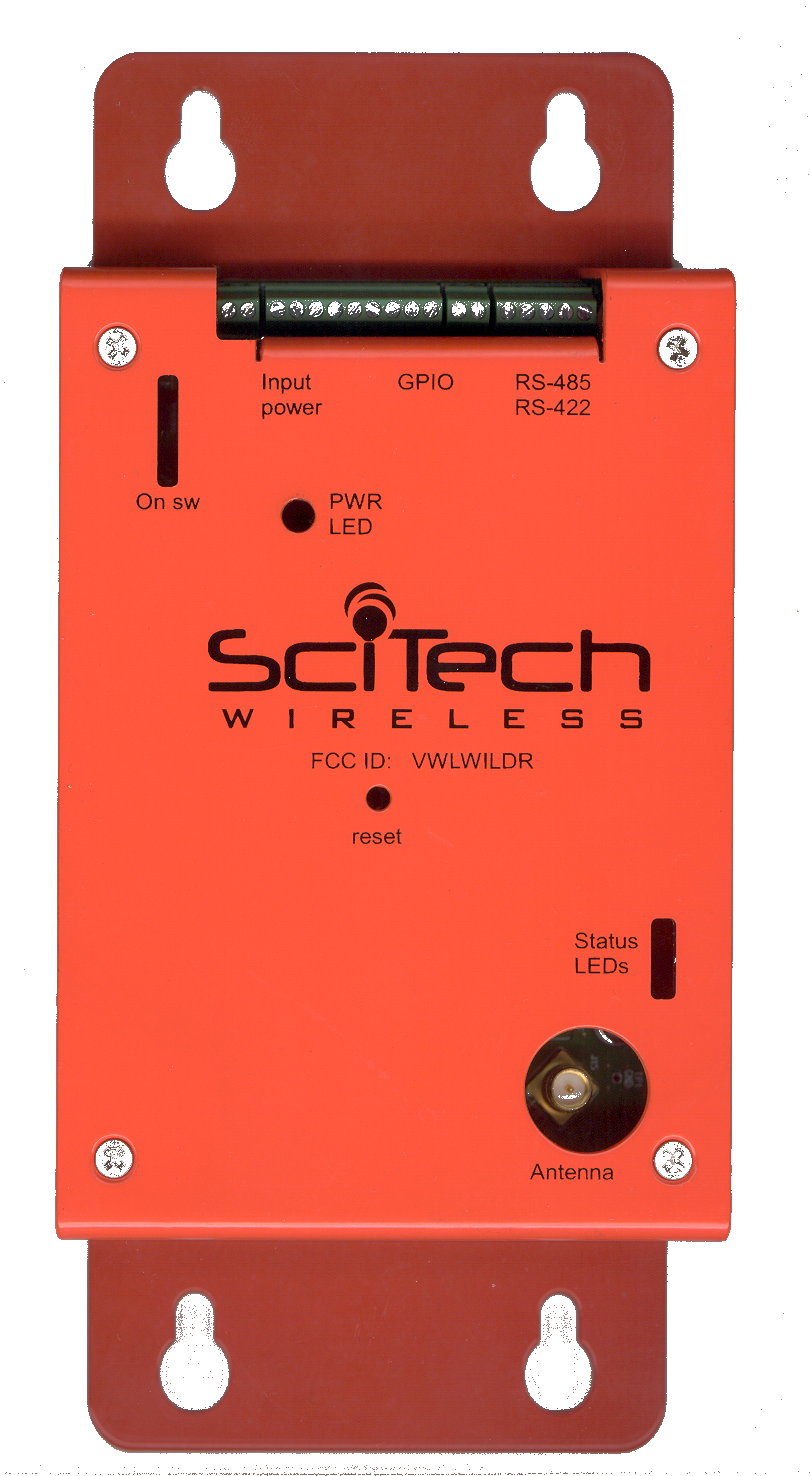

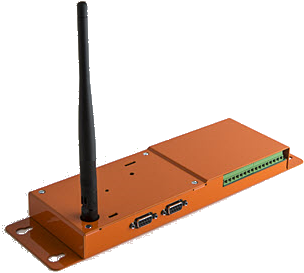

WILDR-MIU
Applications include:
-Wireless Access Control Interface: panel and door functions
-Serial Data Communication
-WILDR Management-Monitor Radio (WMR) remote branch control radios, configure and query status of radios, individually, or via broadcast commands.
-WILDR Repeater Radio (WILDR-RPT) extending the range to 2 miles (LOS), several hundred feet indoors.
Device Connections:
-Console port (db-9 RS-232 configuration port at 115.2 kbps).
-Data interface ports (RS-232, RS-422, RS-485) up to 115.2 Kbits/sec (selectable) transmission rate.
Click on the link for a short overview of serial Multidrop bus protocol Figure.
-GPIO lines for Access Control Applications via the Auxiliary Board, or other TTL I/O lines.
-Encrypted packets in addition to specific site-code security cipher.
Watch WILDR video part1
|
|
WILDR-MIU1
Addressable Single-Port Access Control Interface (Door or Panel) Radio.
Wireless Card / Badge / Credential Reader Interface.
-When located by the door, provides power to the reader and door strike. No need for an additional/external battery.
-One radio at the panel, and one at the door for point-to-point applications
Wiegand (Data0, Data1), or Clock & Data (Mag-stripe) interface
LED-A, LED-B, Door Position, Tamper, REX (Request to Exit)
Electric Strike control, Electric Strike Power.
-Large data buffer (1024 bytes) for Smart Cards; supports all formats.
|
|
WILDR-MIU2
Addressable Dual-Port Access Control Interface Radio - [Doors, or Panel, a Virtual Cage Radio]
Designed to replace security cages, and limit access to client rack cabinets.
-Controls access to each rack cabinet (front and back).
-A 2-door control-panel (from any manufacturer) opens up to 126 rack doors (63 racks, front & back doors), also includes broadcast and house-keeping packets.
-Controls smart door handle with integrated card reader, LEDs, strike, and door position.
-Provides power to the door handle (strike and reader).
-Integrated temperature sensor (up to 98 °C) with selectable Alarm Level.
-Companion software (WILDR Management Monitor) provides visibility and logs all events in MUX applications.
-Can send commands to an individual radio, or broadcast to all: Reset, change channel, change RF output power, open door, close door, change data-rate, turn LEDs on or off, and other custom commands.
Watch WILDR video part2
|
