Wireless Card / Credential / Badge Reader

Interface WILDR-MIU1

Remote your Credential Reader Device

WILDR-MIU provides a wireless interface port for Access Control System applications. The RF output power is sufficient to cover a range of about 1-mile outdoors (FCC certified). The GPIO (general purpose Input/output) port plug-in auxiliary board (AUX) is designed to provide a complete door/checkpoint, or access panel interface for the Physical Security and Access Control applications. The signals are described in detail in the access control menu.
The figure below shows the WILDR-AUX board connection..

MIU-1 CONNECTION

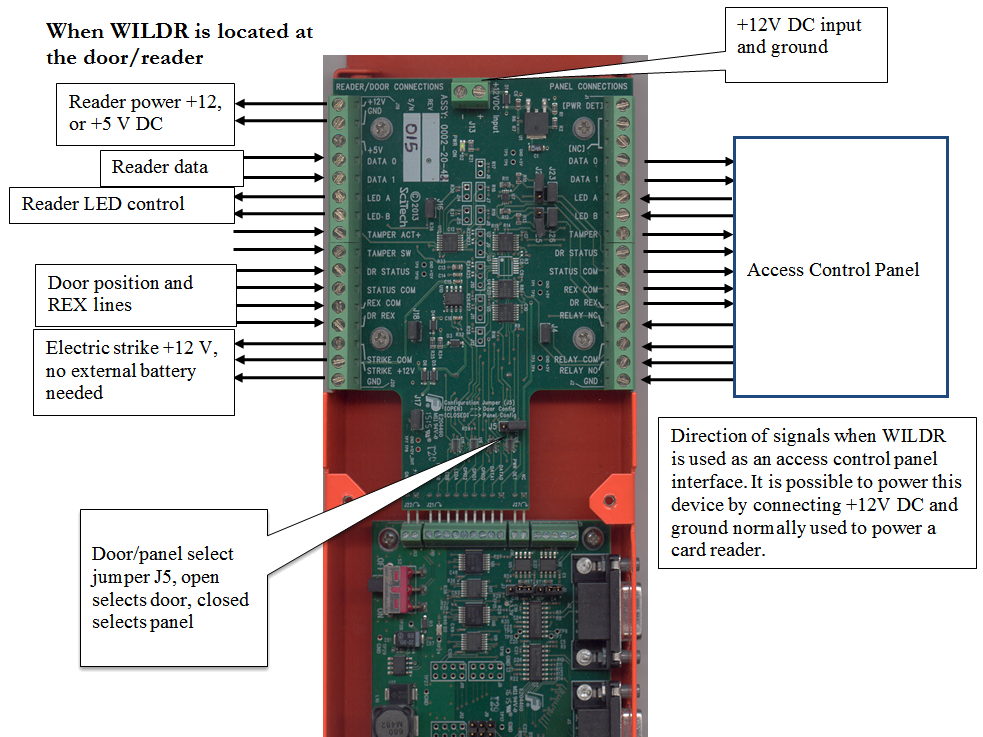

Two WILDR-AUX combinations are required for a complete link. At the door/checkpoint, the signals are connected to door-functions connector of the Aux-board, and at the access control panel, the connections are made to the panel-functions connector of the Aux-board. Figures below depict the connections..


RADIO TO READER & PANEL

WILDR-AUX board combination is the only Wireless Reader on the market with unique capabilities.
> It accepts Wiegand (data0, data1) or Magnetic Stripe (clock & data) format
> Card/credential formats up to 8183 bits
> Detects card timing automatically
> FIPS 201, HSPD-12, PIV compatible
> Compatible with Lenel OSDP
> While WILDR-MIU is configured as a Wireless Reader interface, another serial interface (RS-232 or RS-485) is available for reader housekeeping. Smart readers require this capability to communicate housekeeping queries.
> Provides power to the card reader
> Provides power to the electric strike
> Provides 2 LED lines, Reader tamper, door position sensor, and Request to Exit lines
> On-board LEDs indicate "active link" with the other WILDR

A PC/laptop running a serial communication program such as SourceForge RealTerm [Download] is connected to the console port via a serial cable, or a USB cable to DB-9 (provided) for initial radio configuration. The Console port is used to configure the wireless radio parameters such as frequency channel, output power, and interface. There are a variety of built-in tools in the firmware to assist in configuring the radio in the field. These tools include measuring RF channel noise so the installer can select a clean channel, and transmiting a constant modulated carrier to facilitate range-finding.
Each data packet is encrypted using a random key per packet. For added security, there is also a three character code selected by the user that makes the encryption specific to the site. This feature prohibits radios from other sites to function in your site.
The radio is supplied with complete documentation that includes a quick-start manual, and a user reference manual. For more information, please see the Resources tab to request more information. For Pricing schedule click here, or see Pricing options under the contact tab.
Watch Data Center demo video

WILDR AND AUX-BOARD COMBO
